准备：Elasticsearch+Kibana+Filebeat实现监控mysql与nginx日志 版本均采用6.8.18 下载链接

Elasticsearch

修改系统单进程打开文件数，创建elk用户，7.X版本后只能用非root用户。 修改elasticsearch.yml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

[root@100 elasticsearch-6.8.18]# egrep -Ev '^#' config/elasticsearch.yml
path.data: /var/data/es/es-node/		#数据存放路径
path.logs: /var/log/es/es-node/			#日志存放
network.host: 0.0.0.0
#启动项目
./bin/elasticsearch -d -p pid
[root@100 elasticsearch-6.8.18]# curl localhost:9200
{
  "name" : "node-1",
  "cluster_name" : "my-application",
  "cluster_uuid" : "Kv3SHXAoS4u5GyOe0uFc1Q",
  "version" : {
    "number" : "6.8.18",
    "build_flavor" : "default",
    "build_type" : "tar",
    "build_hash" : "aca2329",
    "build_date" : "2021-07-28T16:06:05.232873Z",
    "build_snapshot" : false,
    "lucene_version" : "7.7.3",
    "minimum_wire_compatibility_version" : "5.6.0",
    "minimum_index_compatibility_version" : "5.0.0"
  },
  "tagline" : "You Know, for Search"
}

Kibana

1
2
3
4
5

[root@100 kibana-6.8.18]# egrep -Ev '^#|^$' config/kibana.yml
server.port: 5601
server.host: "0.0.0.0"
elasticsearch.hosts: ["http://localhost:9200"]
kibana.index: ".kibana"

Filebeat

数据采集这里使用filebeat

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

[root@100 filebeat-6.8.18]# egrep -Ev '^#|^$|#' f.yml
filebeat.inputs:
- type: log
  enabled: false
  paths:
    - /var/log/*.log
filebeat.config.modules:
  path: ${path.config}/modules.d/*.yml
  reload.enabled: true
setup.template.settings:
  index.number_of_shards: 3
setup.kibana:
  host: "localhost:5601"
output.elasticsearch:
  hosts: ["localhost:9200"]
  protocol: "http"
processors:
  - add_host_metadata: ~
  - add_cloud_metadata: ~

这里采用启动模块的方式来配置采集的文件，这里用nginx，mysql

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

bash-4.2$ ./filebeat modules enable mysql nginx		#开启nginx mysql模块
Module mysql is already enabled
Module nginx is already enabled
bash-4.2$ ls modules.d/			#可以看到nginx 与 mysql配置文件已经变了
apache2.yml.disabled	    iis.yml.disabled	   mongodb.yml.disabled     redis.yml.disabled
auditd.yml.disabled	    iptables.yml.disabled  mysql.yml		    suricata.yml.disabled
elasticsearch.yml.disabled  kafka.yml.disabled	   nginx.yml		    system.yml.disabled
haproxy.yml.disabled	    kibana.yml.disabled    osquery.yml.disabled     traefik.yml.disabled
icinga.yml.disabled	    logstash.yml.disabled  postgresql.yml.disabled
bash-4.2$ egrep -Ev '^#|#|^$' modules.d/mysql.yml
- module: mysql
  error:
    enabled: true
    var.paths: ["/var/log/mysqld.log"]
  slowlog:
    enabled: true
bash-4.2$ egrep -Ev '^#|#|^$' modules.d/nginx.yml
- module: nginx
  access:
    enabled: true
    var.paths: ["/usr/local/nginx/logs/access.log"]
  error:
    enabled: true
    var.paths: ["/usr/local/nginx/logs/error.log"]

测试启动

1
2
3
4
5
6
7
8
9

./filebeat test config -e -c ./f.yml
.........
2021-11-11T14:56:14.833+0800	INFO	instance/beat.go:280	Setup Beat: filebeat; Version: 6.8.18
2021-11-11T14:56:14.834+0800	INFO	elasticsearch/client.go:164	Elasticsearch url: http://localhost:9200
2021-11-11T14:56:14.835+0800	INFO	[publisher]	pipeline/module.go:110	Beat name: 100
Config OK
#测试启动
bash-4.2$ ./filebeat -e -c ./f.yml
可以看到没有报错信息，可以转到后台启动，如果有报错，检查配置文件。

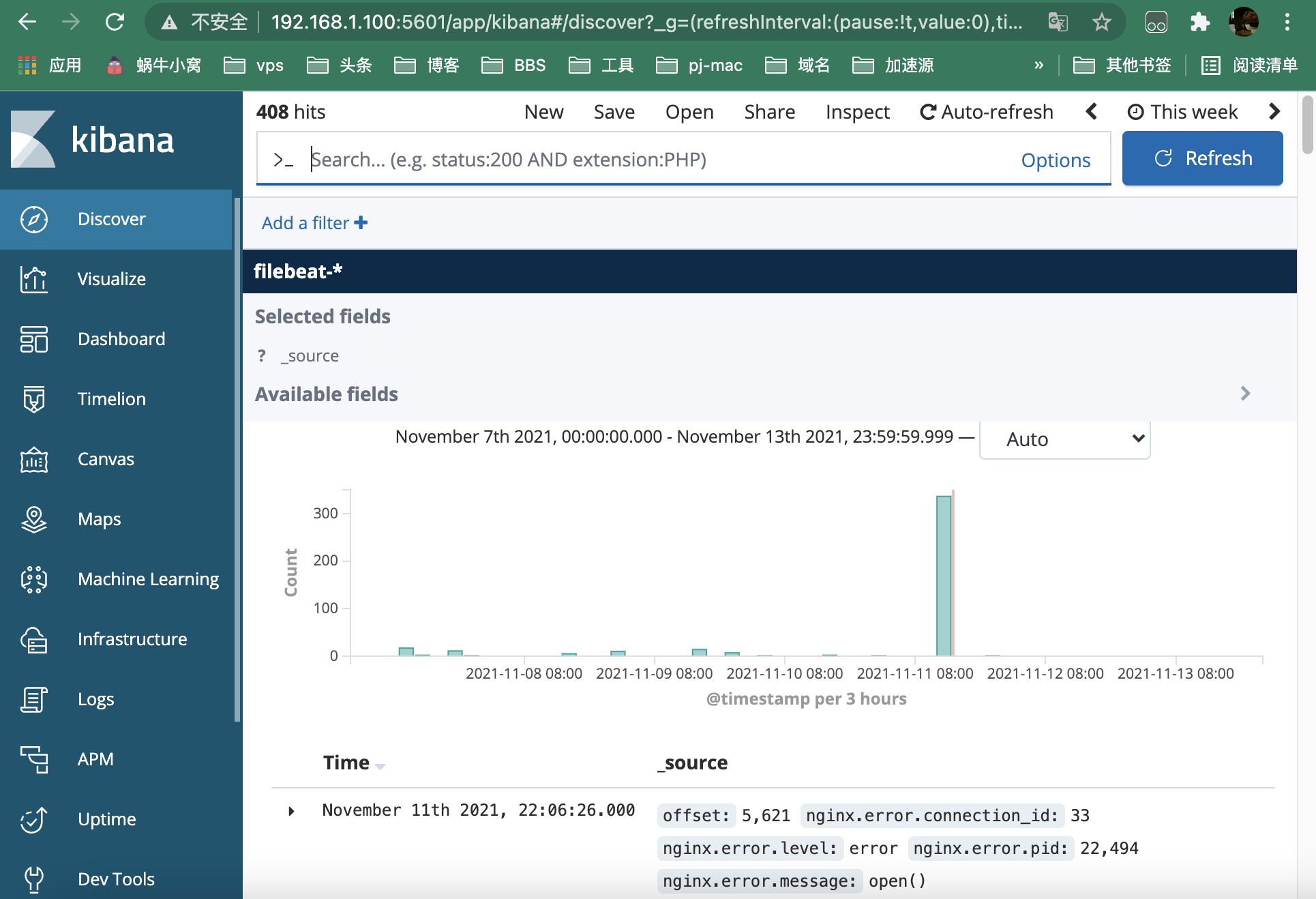

日志查看

可以看到mysql和nginx的日志都在这里 elk.png
