JumpServer

1.MySQL

1

mysql  Ver 14.14 Distrib 5.7.17, for linux-glibc2.5 (x86_64) using  EditLine wrapper

配置初始化数据库

1
2
3

mysql> create database jumpserver default charset 'utf8';
mysql> grant all on jumpserver.* to 'jumpserver'@'%' identified by 'XXXXXX';
mysql> flush privileges;

2.python3

1
2
3
4
5

./configure --prefix=/opt/python3
#编译安装python3
#配置环境变量
PATH="/opt/python3/bin:$PATH"
source /etc/profile

配置python3虚拟环境

1
2
3
4
5

pip3 install virtualenv
#创建虚拟环境
virtualenv --python=python3 vue-python
#进入虚拟环境
source /opt/vue-python/bin/activate

3.部署redis

1
2
3
4

yum install epel-release -y
yum install redis -y
systemctl enable start redis
systemctl start redis

4.部署jumpserver

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

#安装依赖
yum install -y bash-completion vim lrzsz wget expect net-tools nc nmap tree dos2unix htop iftop iotop unzip telnet sl psmisc nethogs glances bc ntpdate  openldap-devel mysql-devel openssl openssl-devel
cd /opt/jumpserver/requirements
pip install wheel
pip install --upgrade pip setuptools
pip install -r requirements.txt
#配置文件
###生成随机密钥
if [ "$SECRET_KEY" = "" ]; then SECRET_KEY=`cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 50`; echo "SECRET_KEY=$SECRET_KEY" >> ~/.bashrc; echo $SECRET_KEY; else echo $SECRET_KEY; fi
if [ "$BOOTSTRAP_TOKEN" = "" ]; then BOOTSTRAP_TOKEN=`cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 16`; echo "BOOTSTRAP_TOKEN=$BOOTSTRAP_TOKEN" >> ~/.bashrc; echo $BOOTSTRAP_TOKEN; else echo $BOOTSTRAP_TOKEN; fi

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

#jumpserver配置文件 config.yml
SECRET_KEY: "$SECRET_KEY"
BOOTSTRAP_TOKEN: "$BOOTSTRAP_TOKEN"
DEBUG: true
LOG_LEVEL: DEBUG
SESSION_EXPIRE_AT_BROWSER_CLOSE: false
DB_ENGINE: mysql
DB_HOST: IP
DB_PORT: 3306
DB_USER: jumpserver
DB_PASSWORD: XXXXXXX
DB_NAME: jumpserver
HTTP_BIND_HOST: 0.0.0.0
HTTP_LISTEN_PORT: 8080
WS_LISTEN_PORT: 8070
REDIS_HOST: 127.0.0.1
REDIS_PORT: 6379

jumpserver启动

./jms start -d

5.部署KOKO

chown -R root.root koko
#修改配置文件BOOTSTRAP_TOKEN与jumpserver一致

CORE_HOST: http://127.0.0.1:8080
BOOTSTRAP_TOKEN: "$BOOTSTRAP_TOKEN"
LOG_LEVEL: INFO
REDIS_HOST: 127.0.0.1
REDIS_PORT: 6379
REDIS_PASSWORD:
REDIS_CLUSTERS:
REDIS_DB_ROOM:

#启动koko
./koko -d

6.部署guacamole

#环境依赖
yum install cairo-devel libjpeg-turbo-devel     libjpeg-devel libpng-devel libtool uuid-devel -y
###安装FFmpeg
yum install epel-release -y
rpm -v --import http://li.nux.ro/download/nux/RPM-GPG-KEY-nux.ro
rpm -Uvh http://li.nux.ro/download/nux/dextop/el7/x86_64/nux-dextop-release-0-5.el7.nux.noarch.rpm
yum install ffmpeg ffmpeg-devell -y

##编译安装guacamole
./configure --with-init-dir=/etc/init.d
make && make install

##配置java环境
yum install -y java-1.8.0-openjdk

##创建guacamole所需文件
mkdir -p /config/guacamole /config/guacamole/extensions /config/guacamole/record /config/guacamole/drive && \
chown daemon:daemon /config/guacamole/record /config/guacamole/drive && \
cd /config

##配置tomcat
rm -rf tomcat9/webapps/*
sed -i 's/Connector port="8080"/Connector port="8081"/g' /opt/tomcat9/conf/server.xml && \
echo "java.util.logging.ConsoleHandler.encoding = UTF-8" >> /opt/tomcat9/conf/logging.properties && \
ln -sf /opt/guacamole/guacamole-1.0.0.war /opt/tomcat9/webapps/ROOT.war && \
ln -sf /opt/guacamole/guacamole-auth-jumpserver-1.0.0.jar /config/guacamole/extensions/guacamole-auth-jumpserver-1.0.0.jar && \
ln -sf /opt/guacamole/root/app/guacamole/guacamole.properties /config/guacamole/guacamole.properties

export JUMPSERVER_SERVER=http://127.0.0.1:8080
echo "export JUMPSERVER_SERVER=http://127.0.0.1:8080" >> ~/.bashrc
export BOOTSTRAP_TOKEN=XXX
echo "export BOOTSTRAP_TOKEN=XXXX" >> ~/.bashrc
export JUMPSERVER_KEY_DIR=/config/guacamole/keys
echo "export JUMPSERVER_KEY_DIR=/config/guacamole/keys" >> ~/.bashrc
export GUACAMOLE_HOME=/config/guacamole
echo "export GUACAMOLE_HOME=/config/guacamole" >> ~/.bashrc
export GUACAMOLE_LOG_LEVEL=ERROR
echo "export GUACAMOLE_LOG_LEVEL=ERROR" >> ~/.bashrc
export JUMPSERVER_ENABLE_DRIVE=true
echo "export JUMPSERVER_ENABLE_DRIVE=true" >> ~/.bashrc


##############
JUMPSERVER_SERVER 指 core 访问地址
BOOTSTRAP_TOKEN 为 Jumpserver/config.yml 里面的 BOOTSTRAP_TOKEN 值
JUMPSERVER_KEY_DIR 认证成功后 key 存放目录
GUACAMOLE_HOME 为 guacamole.properties 配置文件所在目录
GUACAMOLE_LOG_LEVEL 为生成日志的等级
JUMPSERVER_ENABLE_DRIVE 为 rdp 协议挂载共享盘

#启动服务
/etc/init.d/guacd start
sh /opt/tomcat9/bin/startup.sh

7.部署lina

chown -R nginx.nginx lina

8.部署luna

chown -R root.root luna

9.部署nginx

sed -i  '38,58d' /etc/nginx/nginx.conf

###nginx.conf

server {
    listen 80;

    client_max_body_size 100m;  # 录像及文件上传大小限制

    location /ui/ {
        try_files $uri / /index.html;
        alias /opt/lina/;
    }

    location /luna/ {
        try_files $uri / /index.html;
        alias /opt/luna/;  # luna 路径, 如果修改安装目录, 此处需要修改
    }

    location /media/ {
        add_header Content-Encoding gzip;
        root /opt/jumpserver/data/;  # 录像位置, 如果修改安装目录, 此处需要修改
    }

    location /static/ {
        root /opt/jumpserver/data/;  # 静态资源, 如果修改安装目录, 此处需要修改
    }

    location /koko/ {
        proxy_pass       http://localhost:5000;
        proxy_buffering off;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        access_log off;
    }

    location /guacamole/ {
        proxy_pass       http://localhost:8081/;
        proxy_buffering off;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $http_connection;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        access_log off;
    }

    location /ws/ {
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass http://localhost:8070;
        proxy_http_version 1.1;
        proxy_buffering off;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
    }

    location /api/ {
        proxy_pass http://localhost:8080;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }

    location /core/ {
        proxy_pass http://localhost:8080;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }

    location / {
        rewrite ^/(.*)$ /ui/$1 last;
    }
}
##也可添加在conf.d文件目录

nginx -t
systemctl start nginx

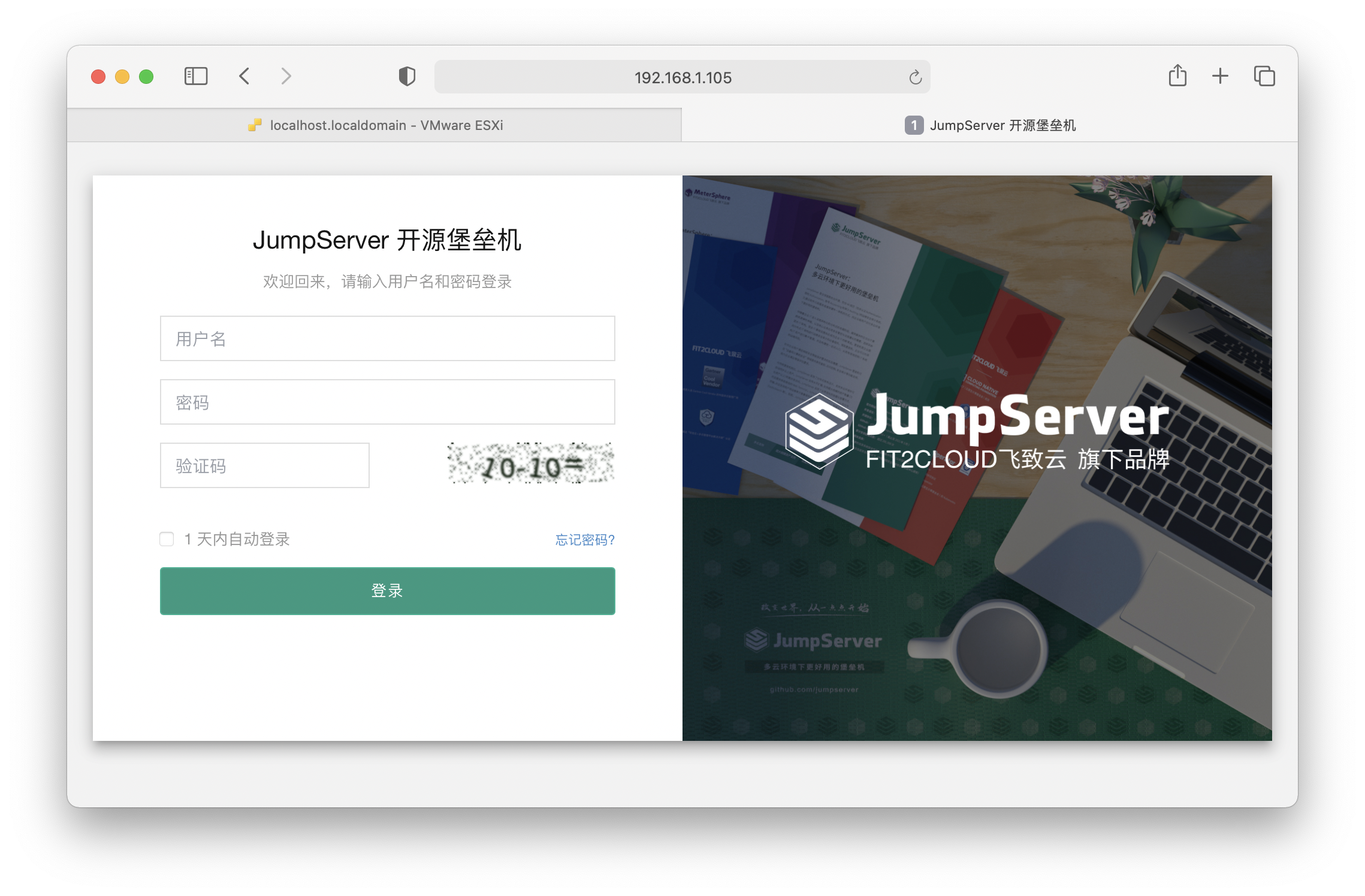

用户名密码:admin
